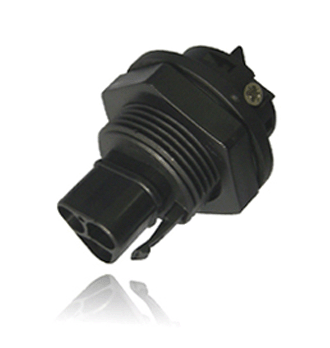

Appearance
Description
Application: photovoltaic (pv) grid inverter, aviation, industry, power supply...
Main features:
* have strong anti-aging, ultraviolet radiation resistant ability
* In conformity with the outdoor had severe conditions use requirement
* The fox cable is used to connect the riveting and tight hoop way connection;
* male female head fixed with stable self-locking mechanism, to freely; .
Single-phase power supply and a, 250 v, wire diameter 10-14 mm, three hole, screw connection
Parameter
Technical Data
|
概述 General |
額定電流Rated current |
25 A |
|
額定電壓Rated voltage |
250 V | |
|
額定脈沖電壓Rated impulse voltage |
4 | |
|
污染等級Pollution degree |
3 | |
|
機械編碼Mechanical coding |
是Yes | |
|
內部可封閉Interlockable |
是Yes | |
|
顏色Color of coding/ |
灰色 Concrete gray | |
|
連接 Connection Data |
固體截面連接面積 Connection cross section solid |
4 mm² |
|
線截面面積 Connection cross section stranded |
4 mm² | |
|
終端數Terminations per pole |
1 | |
|
類型 Model |
類型Model |
插頭Plug |
|
極數Number of poles |
3 | |
|
連接類型Connection type |
螺旋連接Screw connection | |
|
連接螺紋度量Connecting thread metric |
M25 | |
|
插頭角度Angle of plug |
直角Straight | |
|
組件內置Built-in component |
對齊/螺桿Snap-in/screw-in | |
|
防護等級 Degree of protection (IP) |
IP66/IP68 | |
|
材料 Material |
外殼材料Housing material |
聚酰胺 Polyamide |
|
無鹵素Halogen free |
Yes | |
|
接觸材料Contact material | ,
CuZn銅鋅 | |
|
絕緣部分耐溫Insulation components continous temperature |
100°C | |
|
表面處理Surface finish |
鍍銀 Silver-plated | |
|

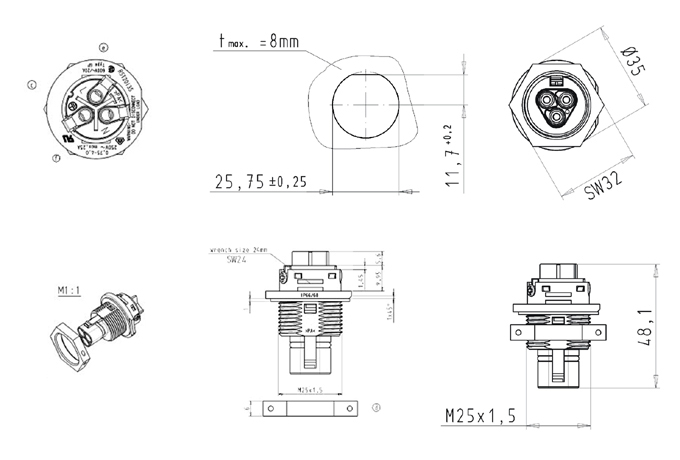

尺寸 Dimensions |
長度 Length |
44.6 mm |
|
寬度 Width |
35 mm | |
|
高度 Height |
35 mm |
